Bosch Lights

FAQ & Wiring Instuctions



WIRE INSTRUCTIONS



BEST TO WIRE ON INDIVIDUAL CIRCUT

TOO BRIGHT ON THE ROAD--- WILL BLIND ON COMING TRAFFIC

IN MANY CASES FACTORY LIGH1S NEED NOT BE USED AS BOSCH LIGHTS GIVE ALL THE ILLIMINATION NEEDED. THIS ALSO SAVES AMP DRAW ON ELECTRIC SYSTEM.

WHEN YOU TRADE EQT. KEEP BOSCH LIGHTS AND PUT ON NEW EQT. CLIP OFF METAL TIP ON KIRUNA PIG TALE AND DISCARD.

BOSCH WIRING KIT AVAILABLE (INCLUDED WITH TOTAL ILLUMINATION SYSTEM)-KIT INCLUDES, WIRE (ENOUGH FOR MOST Applications) TOGGLE SWITCH, RELAY, IN LINE FUSE--KIT RECOMMENDED-- YOU CAN WIRE UP YOUR SELF, ALLOW 7 AMPS PER BOSCH LIGHT.



 ***********************************************************************

WIRE KIT INFO**RED-HOT (PICK UP AI BATTERY OR GOOD SOURCE) BLUE SPLICE INTO RED (MUST BE MADE HOT) YELLOW-TO TOGGLE SWITCH GREEN-TO GROUND. BLACK( TWO) TO BOSCH lights, YOU MAY RUN ONE TO FRONT AND TO BACK Splice OFF TO FEED TWO BOSCH LIGHTS FRONT AND REAR.

***********************************************************************

TRACTOR MOUNTING- KIRUNAS ON FRONT, AS PER PHOTO ON LIT. MOUNTING ON CAB OR OTHER POSITION MAY BE BEST FOR SOME APPLICATIONS. PILOTS ON REAR ANGLE SIDEWAYS SOME.ILLUMINATES SIDE ALSO.



COMBINE MOUNTING -- TWO KIRUNAS FRONT-TRY TO LOCATE MID-CAB AREA. ABOUT EYE LEVEL. SITTING IN CAB. TWO KIRUNAS WILL ILLUMINATE UP TO 18' HEADE EXCELLANT LARGER HEADERS SHOULD USE TOTAL ILLUMINATION SYSTEM -TWO KIRUNAS (AS ABOVE) ONE PILOT IN MIDDLE, TILTED AT 45% TO ACCENT HEADER, OTHER PILOT ON BIN TO ILLUMINATE UNLOAD AUGER



I WILL MAKE YOUR EQT AS CLOSE TO DAYLIGHT AS POSSILE (UNDER SOME CONDITIONS EVEN BETTER)

I GUARANTEE MY BOSCH lights AND YOUR SATISFACTION



THANK YOU,

PAUL MORRIS
BOSCH LIGHTS
162 S CR 175 W
VERSAILLES IN 47042

812-689-3406 FAX     1-800-23 BOSCH     812-689-5620

************************************************************************



BOSCH LIGHTS
162 S. County Rd. 175 W.
Versailles, IN 47042

812-689-5620
800-232-6724
Fax 812-689-3406

(1   Wire on individual circuit

(A) Too bright on the road!

(B) Use factory lights on the road            when meeting traffic.

(C) Bosch lights will blind oncoming traffic.

       (D) It is best to use a Bosch wiring harness - OR

You may wire Bosch lights yourself by getting a good clean 7 amps to each Bosch light, use only good quality switches and wire - REMEMBER - Wiring and switches "Iose" amps - so allow 2 or 3 amps loss if you do your own wiring.

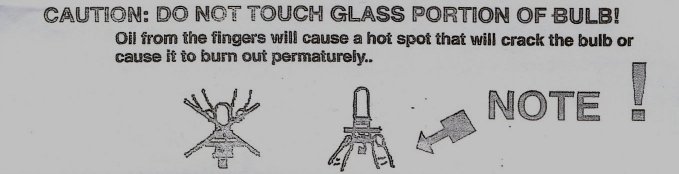

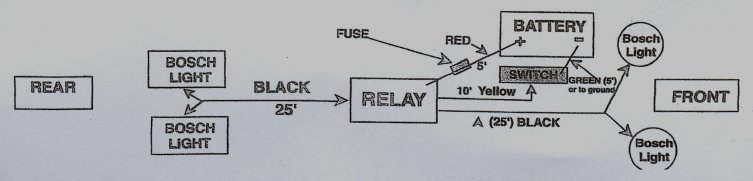

WIRE HARNESS INFORMATION

Red & Green 5" - Yellow 10" - Black (2) 25" Each

(1) Disconnect battery

(2) Mount relay

A. Select a splash proof location to mount relay

B. Drill 1/8 hole, mount relay

C. Terminals on relay should point down

D. It is best to use a Bosch wiring harness - OR

You may wire Bosch lights yourself by getting a good clean 7 amps to each Bosch light, use only good quality switches and wire -  REMEMBER - Wiring and switches "Loose" amps - so allow 2 or 3 amps loss if you do your own wiring.

(3)   9 out of 10 Calls that have Problems is POOR GROUND! !
